The Trusted Choice in Transformer Service Equipment.

Dry Van Trailer
Dry Van Trailer

Packages are specifically engineered to accommodate equipment loading axle weight distribution regulations.  Consult SESCO with special requests.

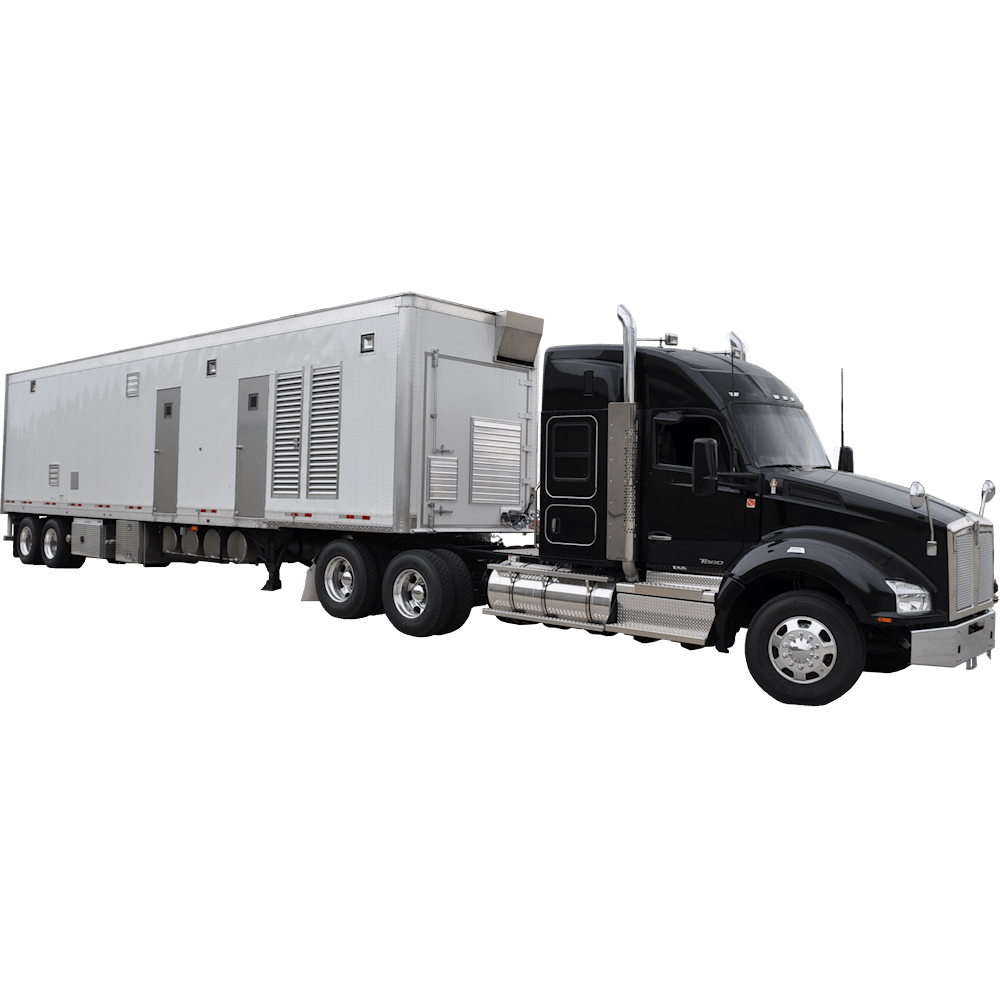

Image is not available

The size and weight capacities of a dry van trailer accommodate a wide variety of options and equipment accessories.  Dry van trailer packages are specifically engineered to accommodate equipment loading axle weight distribution regulations.

[COLUMNS 3][COL]

Length (Custom-Sized)

  • 28' Minimum
  • 48' Maximum

[/COL]

[COL]

Width

  • 102” Standard
  • 96” Custom

[/COL]

[COL]

Height

  • 162” Standard
  • 152” Minimum (Custom)

[/COL]

[COL]

Axles & Suspension

  • Tandem 20K Air Ride
  • Single 20K Air Ride (28 Ft only)

[/COL]

[COL]

Construction Options

  • Standard Reinforced Aluminum Sheet & Post
  • Dual main beam sub-frame w/ FRP sidewalls

[/COL]

[COL]

Common Features

  • Single piece aluminum roof
  • Hardwood flooring
  • Lined interior sidewalls (Sheet & Post)
  • DOT LED lighting
  • Radial tires w/ aluminum outside wheels
  • Factory full swing rear doors
  • Custom installed entry and access doors as required
  • Rear independent landing gear optional

[/COL]

[/COLUMNS]

[COLUMNS 4][COL]

Chassis Options

All MFG Options

[/COL]

[COL]

Body Options

  • FRP or Aluminum sheet and post sidewall body
  • Rear hydraulic lift gates
  • Leveling systems
  • SS body hardward
  • SS door frames
  • Sidewall insulation

[/COL]

[COL]

Oil Connection Options

  • Dual rear
  • Dual belly (road & curbside)
    • Connection enclosures
  • Single rear with rear hose reel

[/COL]

[COL]

Vacuum Connection Options

  • Single rear door accessible connection
  • Dual belly (road & curbside) connections
    • Connection enclosures
  • Dual sidewall connections (road & curbside)

[/COL]

[COL]

Heavy Duty Aluminum Entry Stairs

  • Single or dual removable handrails
  • Belly-mounted pull-out entry landing
  • Belly SS stair storage assembly

[/COL]

[COL]

External Storage

  • Boxes
    • Aluminum diamond plate, lockable, weather-tight
    • 18",  24", & 28" heights
    • 24", 36", 48", & 60" widths
    • 18"-96" depths
    • Floor liners
  • Waste oil tank
  • Pull work tables

[/COL]

[COL]

Area Partitions

  • Control area
  • Lab area
  • Storage area
  • Generator area
  • Clear full view breakaway sliding access door partitions
  • Traditional solid partition w/ hinged steel access door
    • Optional exterior sound insulation

[/COL]

[COL]

Entry & Access Doors

  • Trailer grade Duraplate construction with locking cam
  • 304 SS commercial-grade exterior man door & frame
    • Deadbolt lockset
    • Observation window

[/COL]

[COL]

Windows

  • Non-opening man door & sidewall
  • Opening sidewall

[/COL]

[COL]

Ventilation

  • Standard provided as required
  • Actuated louvers optional

[/COL]

[COL]

LED Lighting

  • Exterior flush wall mount flood
  • Interior ceiling mount

[/COL]

[COL]

120V/1PH Power

  • Load center circuit breaker controlled
  • GFIC circuits
  • 15A zones as required
  • Shore power provisions

[/COL]

[COL]

Test Apparatus Power

  • 230V/3PH Power - 30A circuit with 50' cable
  • 220V/1PH Power - 30A circuit with 50' cable

[/COL]

[COL]

Heating & Air Conditioning

  • Numerous options available

[/COL]

[COL]

Insulation

  • Control area, ceiling and wall insulation available
  • Sound insulation

[/COL]

[COL]

Furniture

  • Industrial grade - welded extreme heavy duty, built to order
  • Commercial grade

[/COL]

[COL]

Accessory Options

  • ANSUL fire suppression systems
  • Surveillance systems
  • Primary power sound attenuated diesel generator
  • Secondary accessory power diesel generators
  • Test equipment

[/COL]

[/COLUMNS]

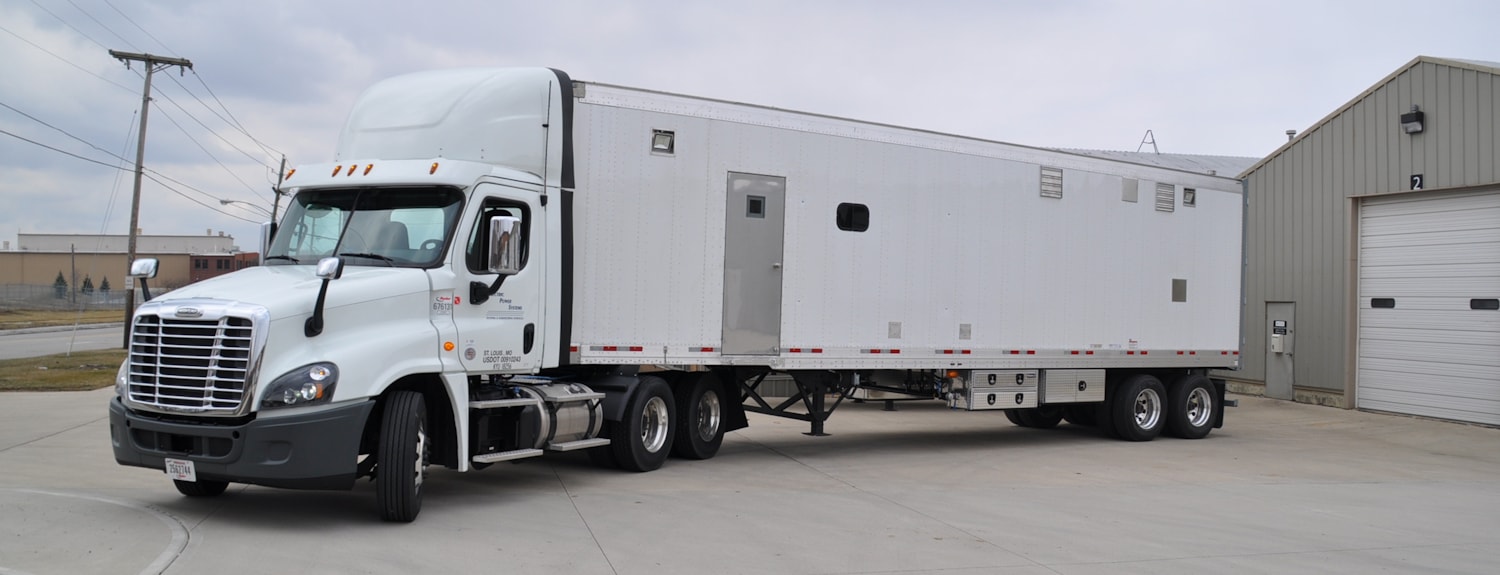

Dry Van Trailer Examples

[gallery ID=10]
