Insulating Oil Conditioning and Regeneration Systems
After 30 years of continuous innovation, the SES320 family can be found in power generation, transmission, distribution, and transformer manufacturing industries world-wide.
SES320-3000
SES320-3000
SES320-3000
3000 GPH
Explore Options
SES320-3000

The SES320 family of stationary and mobile vacuum oil purifiers are used to prepare dielectric fluids for service, as well as vacuum dry and fill high voltage oil cooled equipment.

All SES320 models are fully customizable conditioning systems and are designed to “single pass” oil processing performance standards to accommodate all transformer maintenance and commissioning requirements. The SES320 incorporates an optional adsorbent treatment stage to add oil regeneration capability to the standard SES320 capabilities. The SES320 series includes a wide variety of mounting options.

The SES322 is targeted for drum quantity specialty dielectric or lubricating fluids that requires de-gasification and or polor contaminant removal or color correction.  The SES32 offers both 55-gallon multi-pass batch and single pass processing modes.

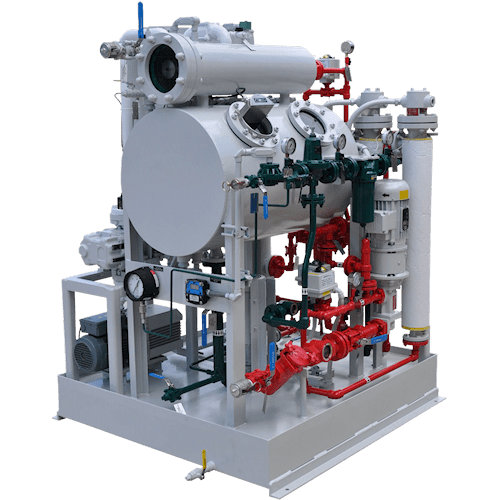

The SES323 is a high discharge pressure version of the SES322 batch system targeted for high voltage cable oil filling applications.

320 Series Oil Purification

SES320 - Insulating Oil Purifier
SES322 - Batch Oil Purifier
SES323 - Cable Oil Purifier

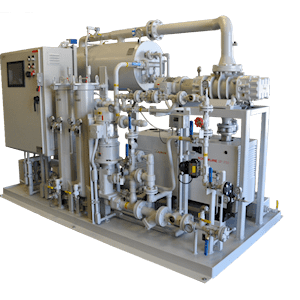

thumb SES320 1800 thumb SES320B250X250 thumb 320B 500x500
Description
  • Fully Customizable
  • Dielectric Fluid Conditioning and Regeneration
    and Transformer Dry Out Systems
  • 900-3000 GPH
  • Specialty Fluids
  • Cable Oil
  • Multi-Pass 55 Gallon Batch
  • Vacuum Degasification and Dehydration System
  • Oil Filled Cable
  • Dielectric Fluid Conditioning,
  • Regeneration, and Filling System
Model Number
Links

SES320-1260

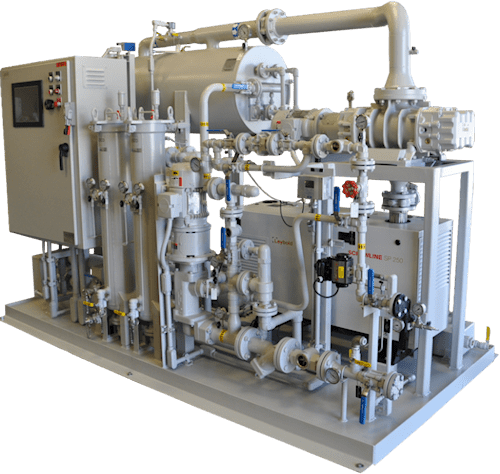

SES320-1800
SES320-2400
SES320-3000

SES322

SES323
Processed Fluid
Types
  • Petrolium Based
  • Natural Esters
  • Synthetic Esters
  • Silicones
  • Petrolium Based
  • Natural Esters
  • Synthetic Esters
  • Silicones
  • Polyol Esters
  • Cable Oils
  • Syntethetics &
  • Petrolium Based
Functions
  • Single Pass Oil Conditioning
  • Multi-Pass Oil Conditioning
  • Transformer Hot Oil Circulation
  • Transformer Core Heat Up
  • Transformer Vacuum Dry-Out
  • Transformer Vacuum Filling
  •  Optional Multipass Reganeration
  • 5 - 55 GAL Multi-Pass Batch Processing Mode
  • 3 GPM Single Pass Processing Mode
  • Oil Conditioning or Oil Regeneration
  • Optional Use Adsorbent Treatment Stage
  • 250 CFM Vacuum Connection
  • Aparatus Evacuation and Vacuum Filling
  • 55 GAL Multi-Pass Batch
  • Oil Conditioning & Regeneration
  • Optional 1 GPM Single Pass
  • Oil Conditioning & Regeneration
  • Vacuum Dry-Out
    Vacuum Filling
Mounting Options
  • Skid
  • Bumper Hitch Cargo Trailer

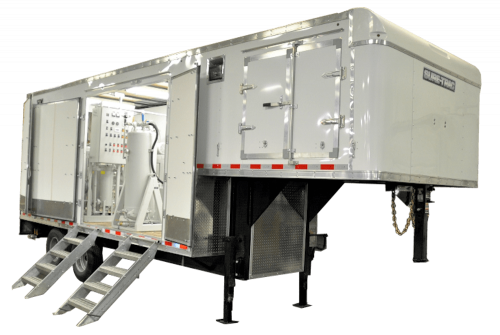

  • Gooseneck Cargo Trailer

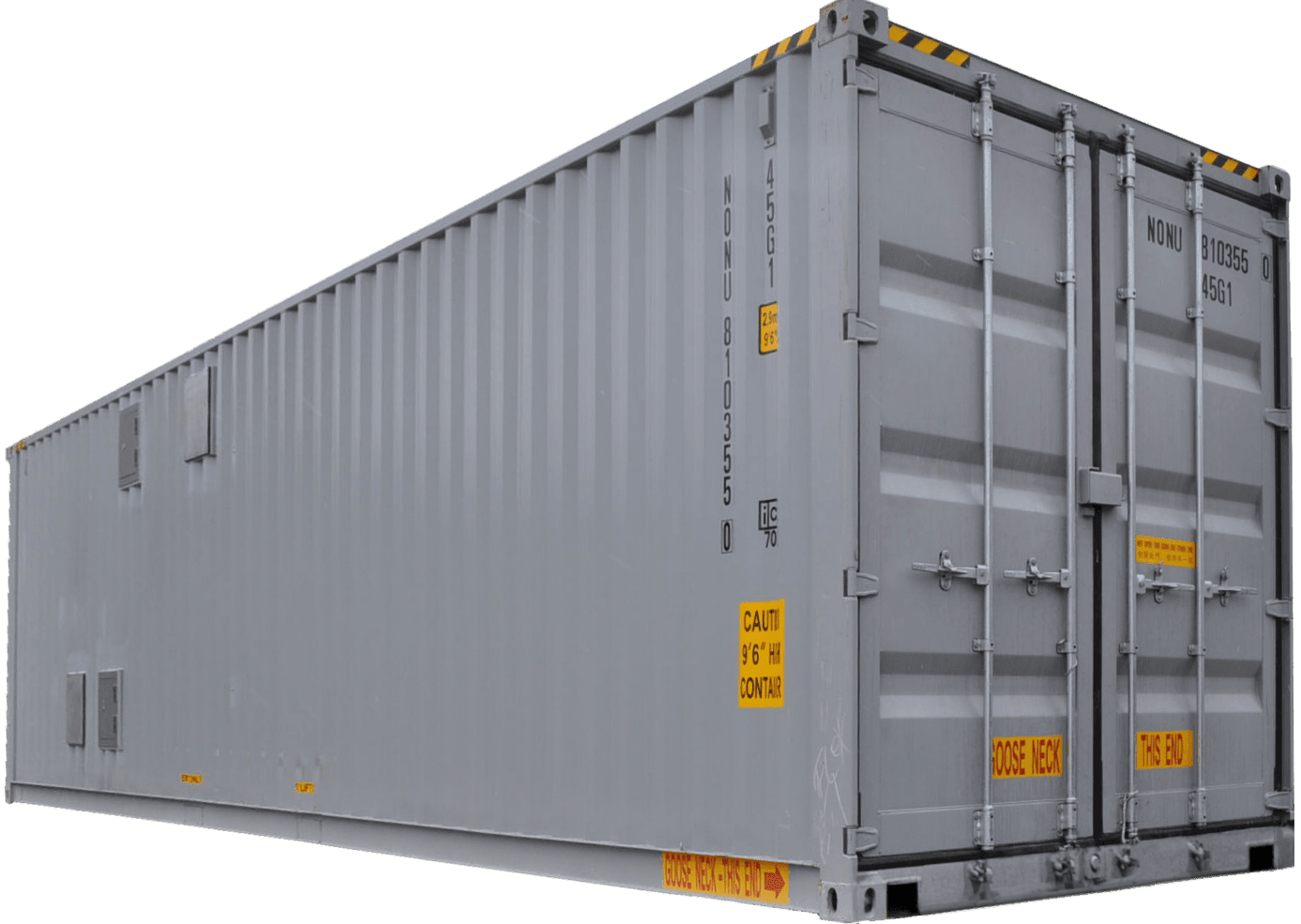

  • ISO Container

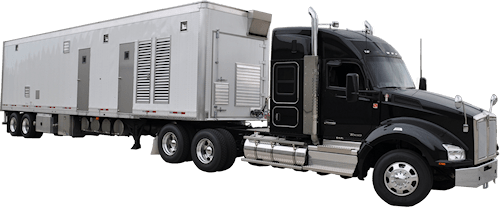

  • Straight Truck

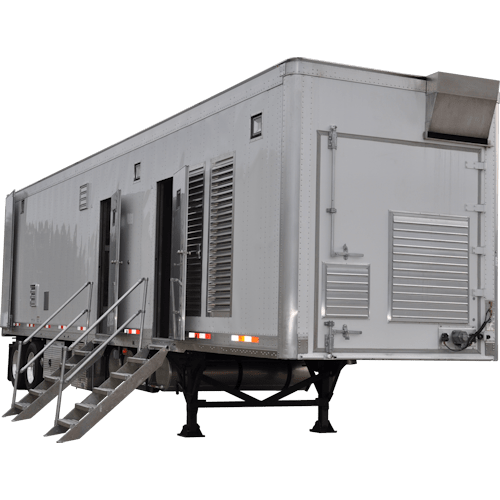

  • Dry Van
  • Step Deck Dry Van
  • Skid
  • Bumper Hitch Cargo Trailer
  • Canvas Outdoor Enclosure
  • Gooseneck Cargo Trailer
  • Skid
  • Bumper Hitch Cargo Trailer
  • Gooseneck Cargo Trailer
  • ISO Container
