Insulating Oil Purifier

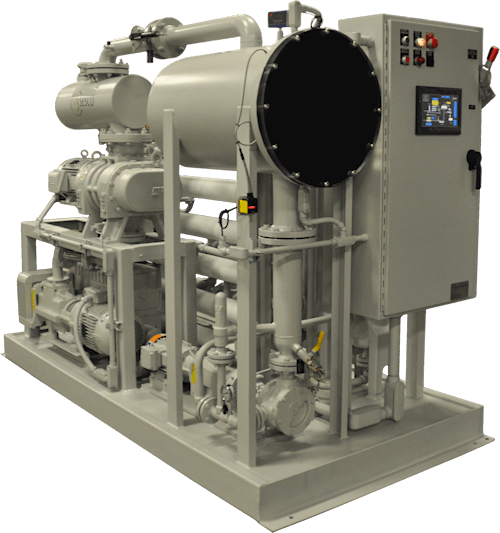

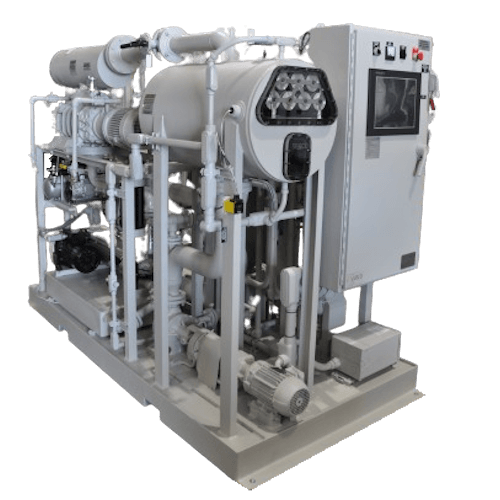

The SES320-1260 has a maximum flow capacity of 1200 gallons per hour. The SES320 is fully customizable and available in stationary skid and numerous mobile configurations.
All SES320 models are designed to “single pass” oil processing performance standards to accommodate all transformer maintenance and commissioning requirements.
SES320-1260 Highlights
- Mineral, Natural and Synthetic Esther, Silcone
- Single Pass Processing
- 15 GPM (3407 LPH)
- 112 kW Electric Heating
- 1150 Cfm Vacuum System
The SESCO SES320 series of insulating oil conditioning and regeneration systems have been manufactured for more than 30 years and can be found in the power generation, transmission, distribution and transformer manufacturing industries world-wide. The SES320 family of oil purifiers are used to condition new and recondition in service insulating fluids for use in high voltage electrical equipment. The SES320 incorporates an optional adsorbent treatment stage to add oil regeneration capability to the SESE320.

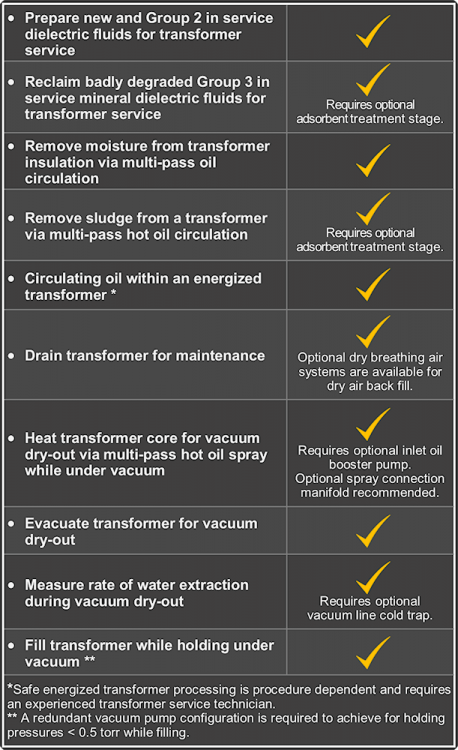

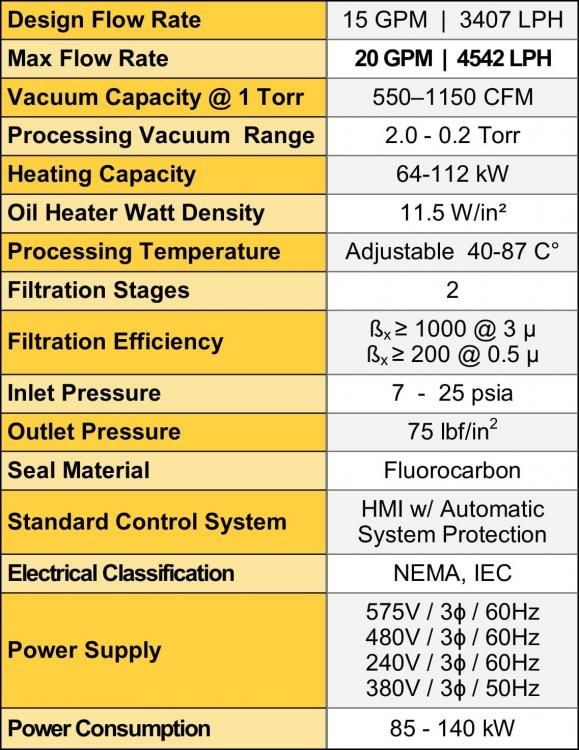

Capabilities and Specifications

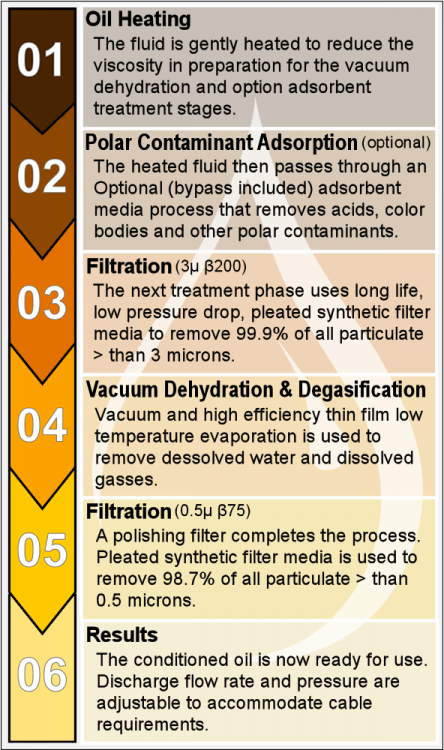

Treatment Stages

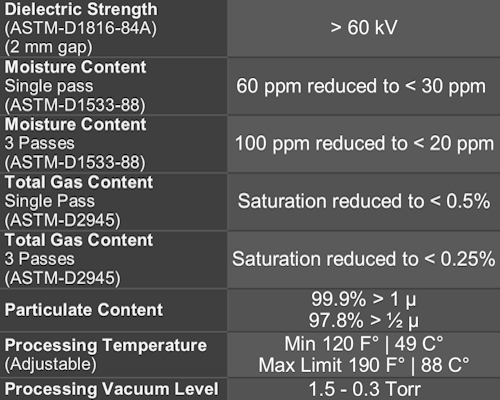

Performance
Mineral Oils

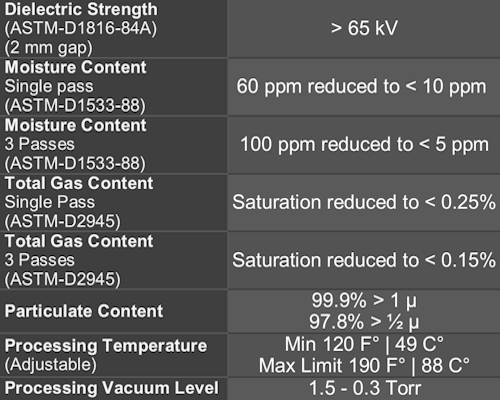

The SES320 is designed to worst case single pass performance standards for mineral oil. The dissolved water saturation level is 90-100 ppm at typical ambient temperatures.
Natural Ester Fluids
The flow capacity of the SES320 must be de-rated by 25% when processing Natural Ester Dielectric Fluids. At least two passes are recommended.
Synthetic Ester Fluids

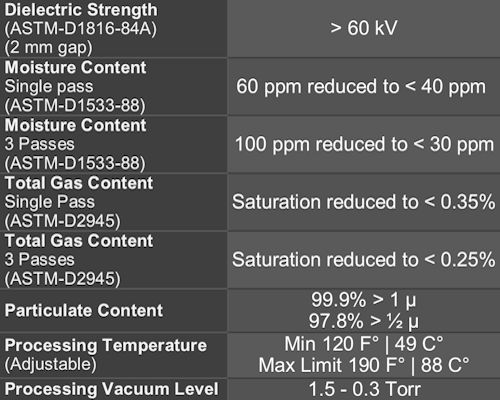

The flow capacity of the SES320 must be de-rated by 25% when processing Synthetic Ester Dielectric Fluids. At least two passes are recommended.
Features

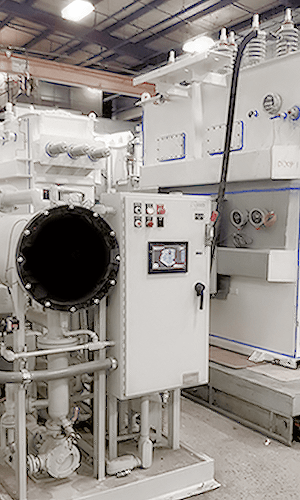

The SES320 system is a fully customizable solution for any stationary or mobile dielectric fluid conditioning, regeneration, and transformer processing challenge. Numerous vacuum package, heating system, instrumentation, mounting and accessory options allow the SES320 system to be configured to meet your exact requirements.

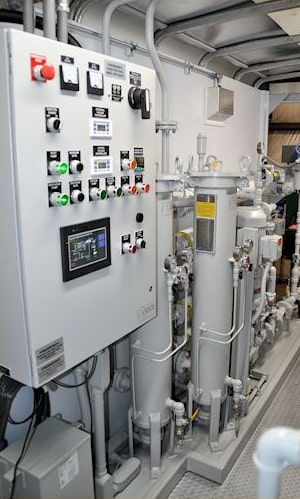

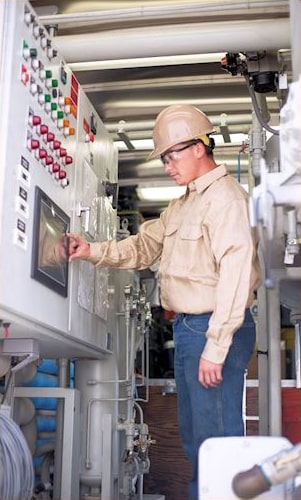

At the core of the SES320 system, automatic temperature, level, foam, and re-circulation control provides trouble free simple operation for a single operator. Discharge flow rate can be adjusted by simply restricting any discharge valve or from the panel speed control.

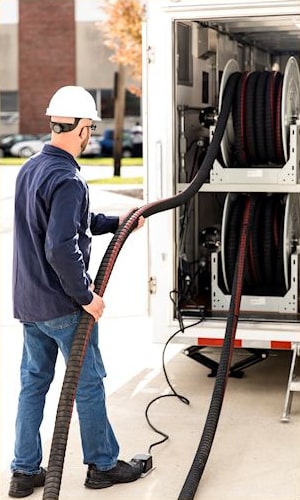

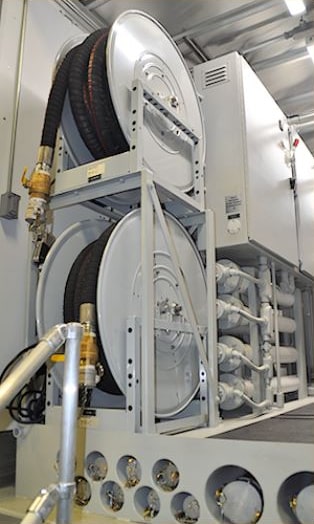

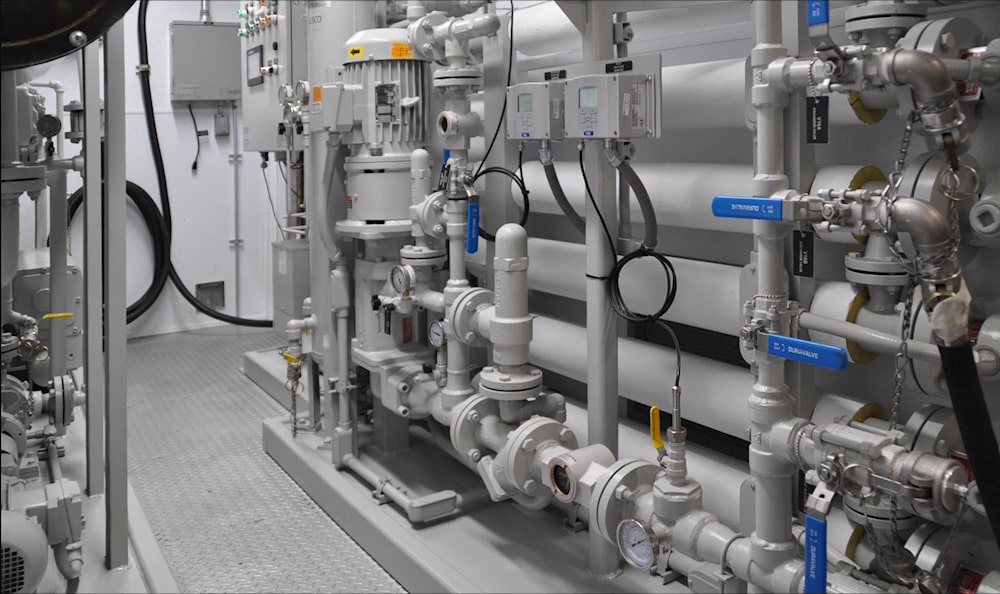

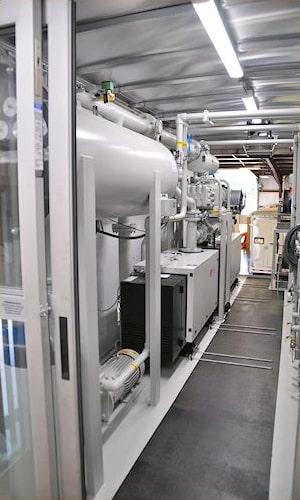

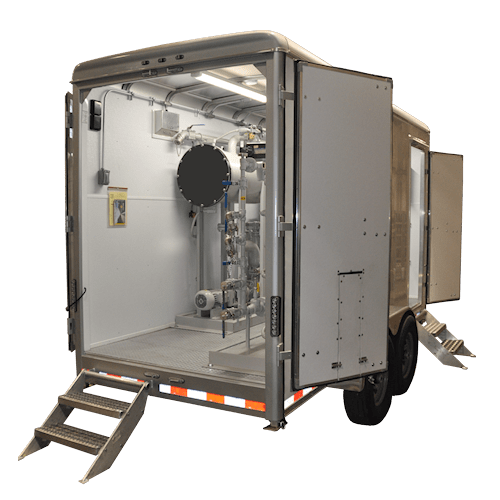

Access to all maintenance related components is provided on both stationary and mobile layouts. The mobile version above uses a unique center isle layout scheme.
Support is a phone call away M-F 8-5 EST. After hours call back support can be reached anytime by email.
(260-422-1671)
Quality Control

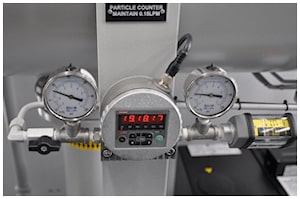

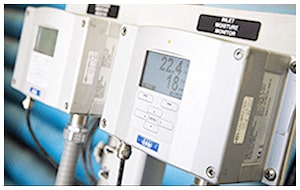

Inline moisture (ppm) and temperature (°C/°F) monitors are available to provide local display with HMI charting and logging for processor supply and discharge streams. Calibration factors can be changed on the fly for use with mineral, natural, and synthetic ester insulating fluids.

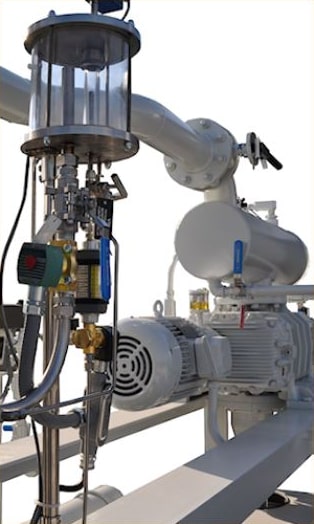

Convectron enhanced pirani vacuum sensors provide provide full scale (760 - 0.01 Torr) digital process pressure display
with HMI charting and logging. Sensors for external vacuum connection and remote transformer monitoring are optional.
An optional processed oil contamination sensor monitors the processed oil stream to provide an ISO cleanliness classification for local digital display with HMI charting and logging.

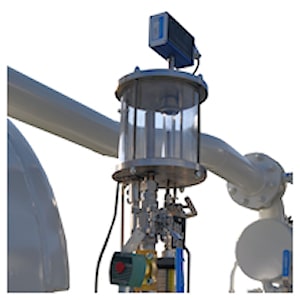

An optional processed oil Total Gas Content sensor monitors the processed oil stream to provide the oil Total Gas Content for HMI display, charting and logging.
Processor Options

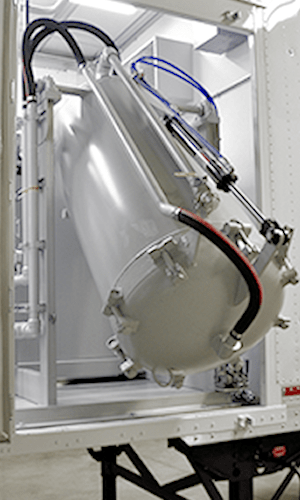

The SES320 system includes and additional adsorbent treatment stage to remove polar contaminants, and regenerate badly degraded in service mineral oils.
The SES320 system can be configured for simple dedicated oil processing or more demanding single pass evacuated transformer filling. Five vacuum capacity options guarantee you get what you need.

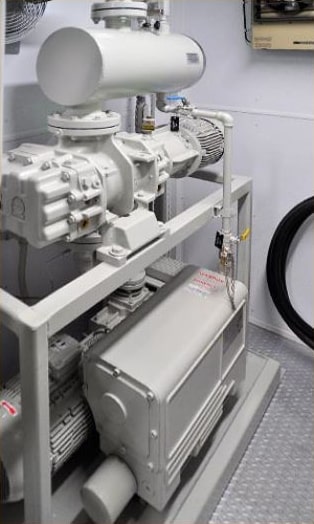

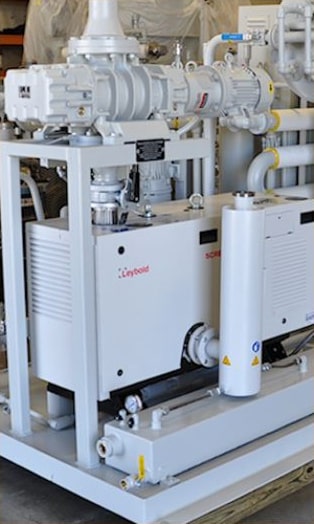

Rotary vane, rotary piston, and dry screw compression roughing pump options are available to meet your specification and price point.

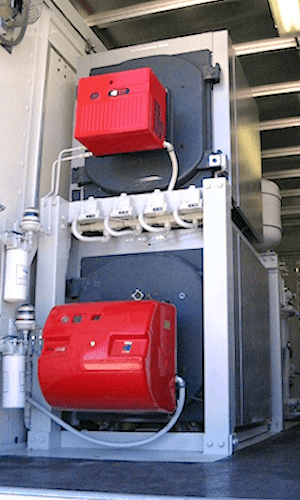

Multiple electric and fuel oil burner primary heating system options are available to accommodate any climate. Secondary heating system options allow oil temperature to be boosted after the degas stage to provide maximum BTU's to the transformer while avoiding oil degradation.
Mobile Options
The SES320 system is available in custom skid arrangements for demanding space constrained stationary applications.

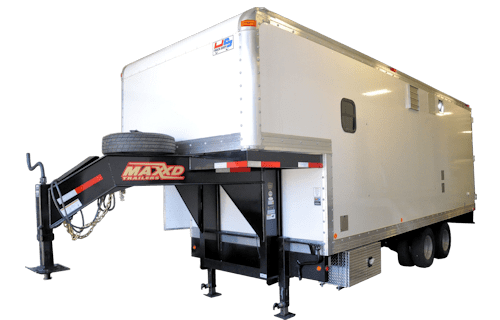

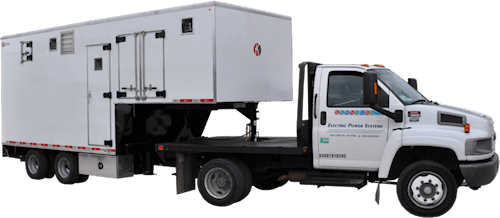

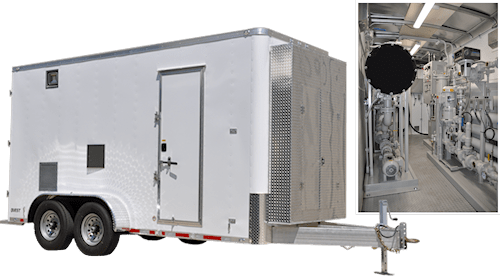

The heavy duty Deck Over Cargo (DOC) Trailer accommodates larger SES320 system configurations with plenty of room for to store accessories and protect operators from the elements. See the SES952 Deck Over Cargo Trailer Mounting Configuration work sheet for optional equipment.

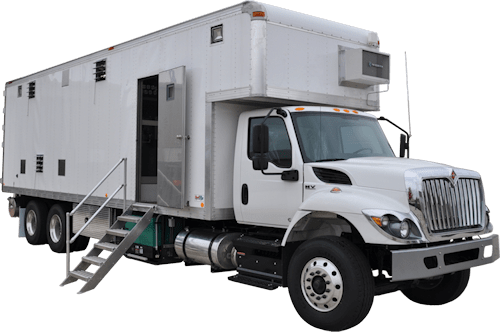

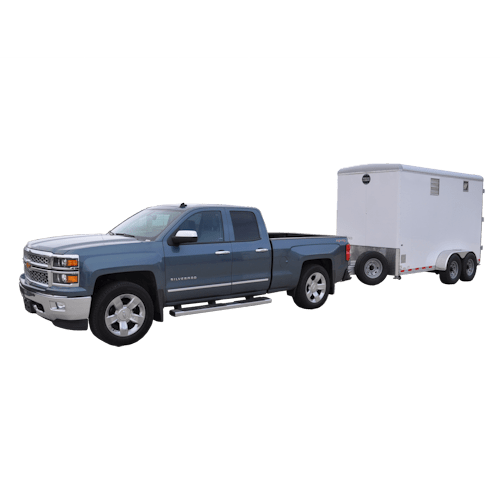

Most configurations of the SES320 system can be box truck mounted with room for an ample control area. Chassis axle capacity, frame rails, and wheel base are engineered to accommodate each specific configuration. Chassis from three major manufacturers are available. See the SES953 Box Truck Mounting Configuration work sheet for optional equipment.

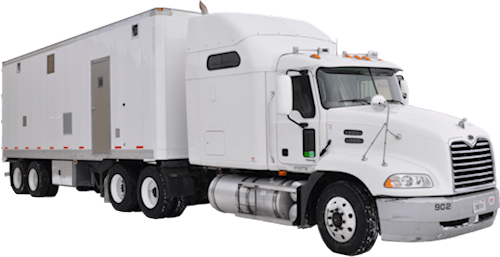

Two types and dry van mounting options are available for self powered and shore powered accessory integrated packages. Van mounted packages range from 28'-48' depending on SES320 system configuration, integrated accessories, and amenities. See the SES954 Dry Van Mounting Configuration work sheet for available options.
Accessories

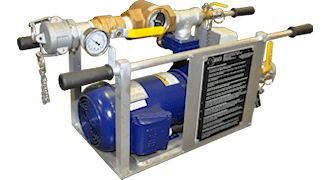

The SES330 oil processor inlet oil booster pumps allow the SES320 processor to heat and dry the the transformer core by circulating oil through the transformer with the core exposed while under full vacuum. Centrifugal and positive displacement options are available. The popular SES330S centrifugal version is usually in stock.

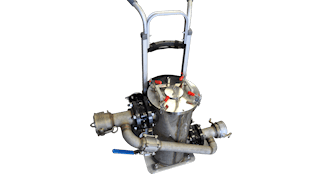

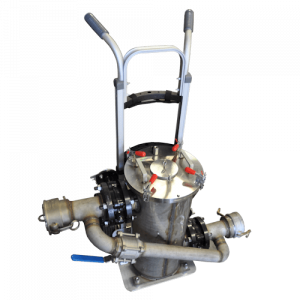

Vacuum line cold traps are used to measure the rate of water extraction during the evacuation stage of the transformer dry out process. Trailer mounted refrigerated and portable liquid N2 vacuum line traps are available.

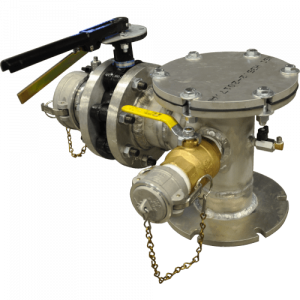

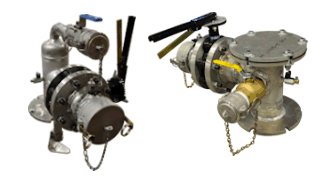

SESCO manufactures two styles of vacuum hose connection manifolds for transformer evacuation. Both styles attach to the standard PRV mounting flange. The SES425-E is for evacuation and allows the PRV to be optionally reattached. The SES425-HOS provides evacuation and directional hot oil spray during evacuated exposed core circulation.
Transformer back fill dry air systems are available for SES320-1800 mobile package integration or as stand alone systems. The systems are available in breathing quality certified and standard dry air quality options. Each type is available in two (-70°) or three (-90°F) stage configurations.
SES320 Application Options
